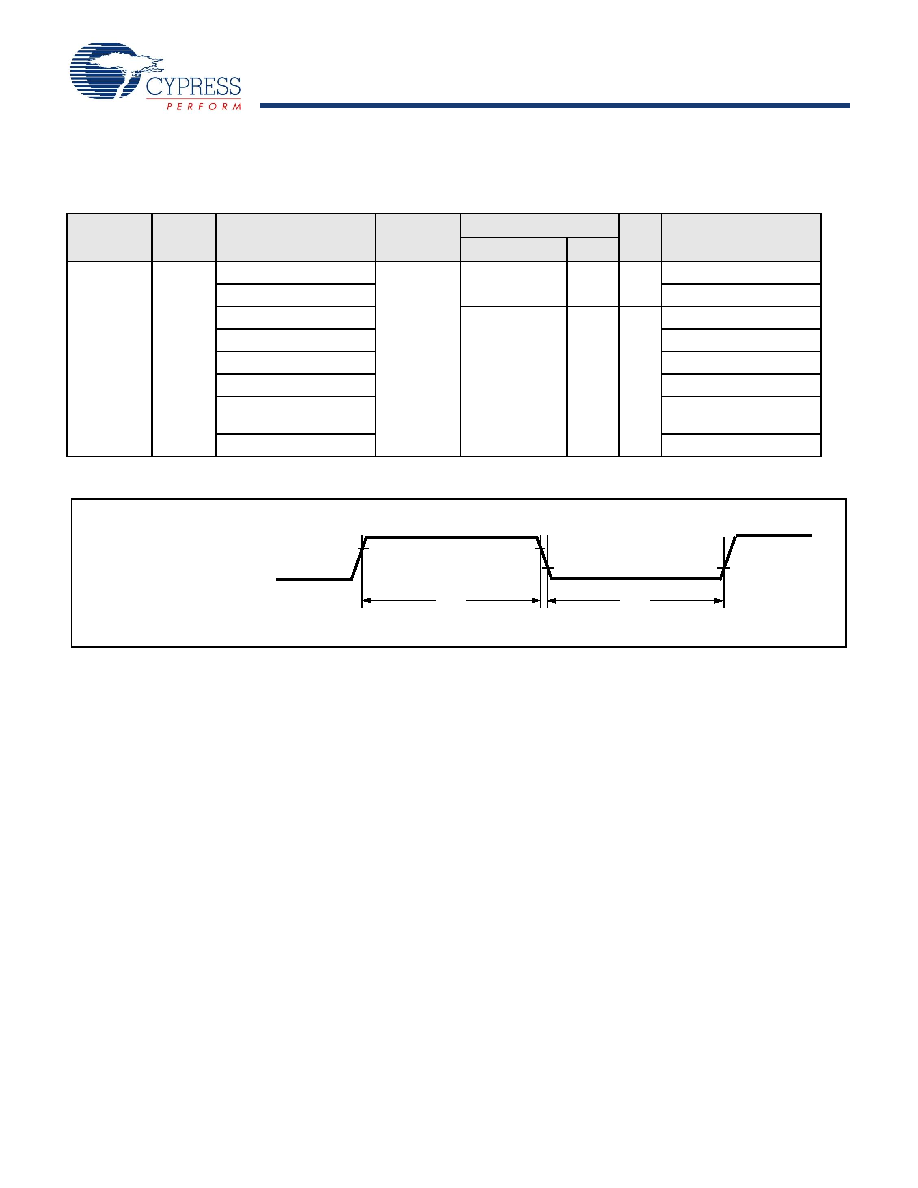

73 / 109 page ![]() MB96340 Series Document Number: 002-04579 Rev. *A Page 73 of 109 14.4.5 External Input timing Note : Relocated Resource Inputs have same characteristics 14.4.6 External Bus timing Note: The values given below are for an I/O driving strength IOdrive = 5mA. If IOdrive is 2mA, all the maximum output timing described in the different tables must then be increased by 10ns. (TA = -40°C to 125°C, VCC = AVCC = 3.0V to 5.5V, VSS = AVSS = 0V) Parameter Symbol Pin Condition Value Unit Used Pin input function Min Max Input pulse width tINH tINL INTn(_R) - 200 - ns External Interrupt NMI(_R) NMI Pnn_m 2*tCLKP1 + 200 (tCLKP1=1/fCLKP1) -ns General Purpose IO TINn(_R) Reload Timer TTGn(_R) PPG Trigger input ADTG(_R) AD Converter Trigger FRCKn(_R) Free Running Timer external clock INn(_R) Input Capture VIL VIH tINH VIL VIH tINL External Pin input |
|
