ADAU1373
Rev. 0 | Page 203 of 296
Bits
Bit Name
Settings
Description
Reset
Access
0110
21.44 ms
0111
42.88 ms
1000
85.76 ms
1001
171.52 ms
1010
341.33 ms (default)
1011
686 ms
1100
1.37 sec
1101
Reserved
1110
Reserved
1111
Reserved

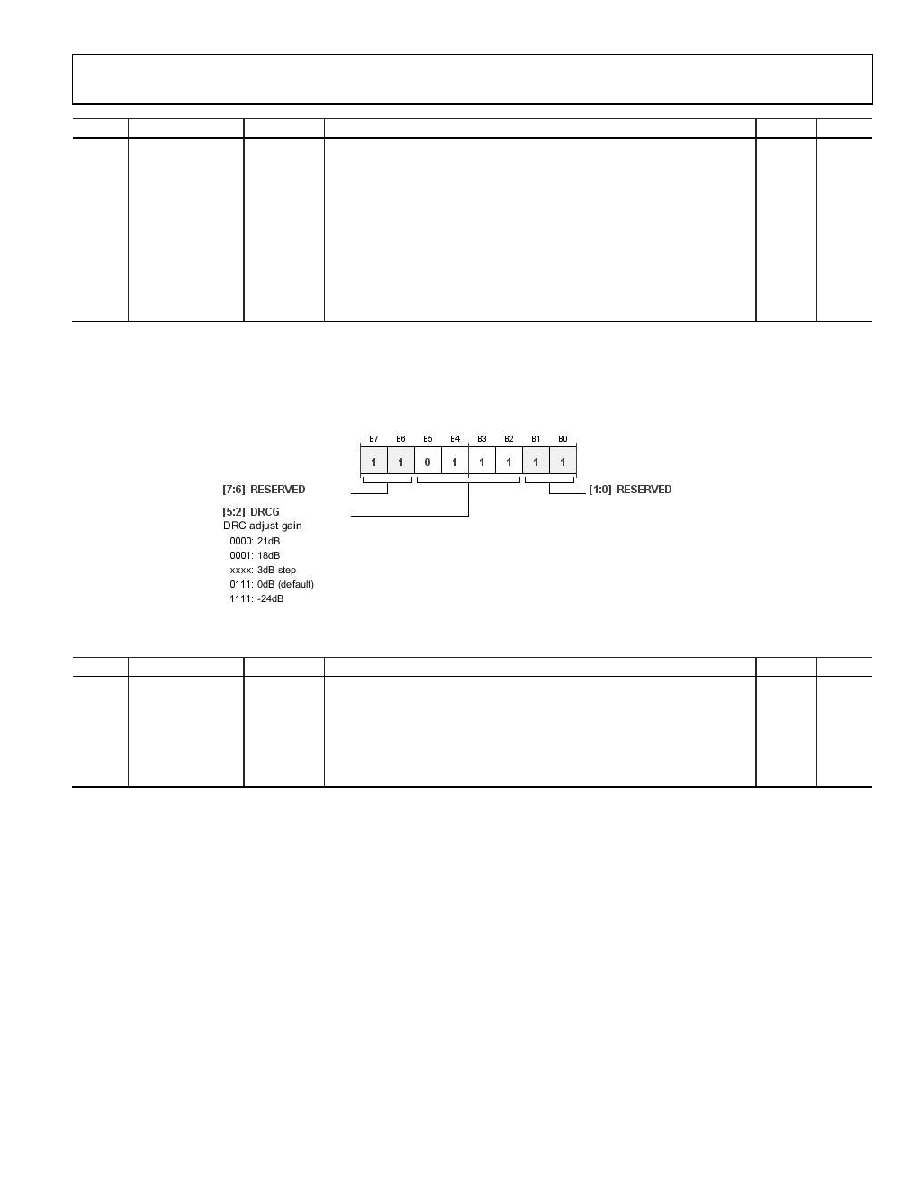

DRC1_CTRL13 REGISTER
Address: 0x8C, Reset: 0xDF, Name: DRC1_CTRL13
DRC1 Gain Setting
Table 163. Bit Descriptions for DRC1_CTRL13
Bits
Bit Name
Settings
Description
Reset
Access
[5:2]
DRCG
DRC1 Adjust Gain. DRC1 gain setting.
0x7
RW
0000
21 dB
0001
18 dB
xxxx
3 dB step size
0111
0 dB (default)
1111
−24 dB
